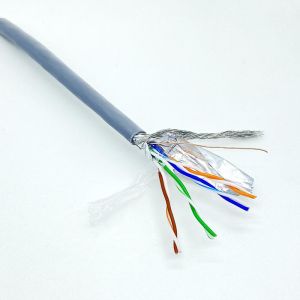

1000Mbps Double Shielded SF UTP Bulk CAT5E Cable

Brand Name : OEM Produce

Model Number : Bulk CAT5E Cable

Certification : CPR. Rohs. CE.

Place of Origin : Hangzhou, China

MOQ : 10km

Price : negotiatable

Payment Terms : TT. LC

Supply Ability : 5000km/ Month

Delivery Time : 20days after deposit

Packaging Details : 100M. 200M. 300M. 1000FT. 500M. Reel

Type : SF/ UTP CAT5E Cable

Conductor : 4 Pairs Bare Copper

Shield : AL Foil+AL MG Alloy Braiding

Rip Cord : Nylon or Cotton Wire

Sheath : Gray PVC

Jelly : without Jelly

Length : 1000Ft/ 305M or OEM

Packing : Pull box or OEM

Application : Networking,PC,Telecommunication

Contact Now

SF/ UTP Bulk CAT5E Cable Double Shielded OEM ODM Indoor Ethernet Network Cable

Shielded SF/UTP CAT5E Twisted Lan Cable Blue Transparant PVC Computer Wire

SF/ UTP CAT5E
Production Description: Rate temprature: 60℃, 75℃, 90℃ Reference Standard: TIA/ EIA-568B Bare soled copper conductor RoHS Complied PVC, PE or LSOH Jacket Complies to TIA/ EIA-568B&ISO/ IEC 11801 Application: Ethernet 10Base-TX ATM Trunk Wiring
Basic ConstructionMaterialDiameter (mm)
ConductorBC/ CCA24AWG
InsulationHDPE0.9
ShieldAL Foil15
BraidingAl-Mg Wire64*0.12
Rip CordNylon/ Cotton15
Outer JacketBlack UV-PE5.5
BASIC CHARACTERISTICS
Temperature Rating-20℃ to 60℃
Dielectric Breakdown2500V
DC Resistance/Unbalance28.6Ω/1000’Max/5% Max
Characteristics Impedance100Ω
Other Electric PerformanceFrequencyAttenuationReturn LossPair to Pair
(MHz)(dB/100m)(dB/100m)NextELFEXT
(dB/100m)(dB/100m)
0.771.8NA7069
122068.366.8
442359.354.7
85.824.554.848.7
106.52553.346.8
168.22550.342.9
209.22548.840.7
2510.424.347.338.8
31.2511.723.645.936.9
62.51721.541.430.8
1002220.138.326.8
15528.118.835.522.9
20032.41833.820.7
3004116.832.317.2
35044.916.330.215.9

Networking Cable Production Line

If you have technical support from an engineer, please let us know the type of cables you need, the inner conductor, the braiding coverage, the jakcet material and color, the packing length and design, and the application. We will help you choose the most suitable cable.


If you are not sure about certain specifications of the electric cables, please let us know your inquiry and we are very happy to give you professional technical advice and support services. Our company offer specific cables and wires consulting, design, OEM and manufacturing based on the customer's requirements and application scenarios to help customers create more business opportunities.
